G-Link-200具有板載三軸加速度計，可實現高分辨率數據采集，并具有極低的噪聲和漂移。衍生振動參數允許長期監控關鍵性能指標。

LORD Sensing無線傳感器網絡可通過可擴展的傳感器網絡實現同步，高速傳感和數據聚合。我們的無線傳感系統是測試和測量，遠程監控，系統性能分析和嵌入式應用的理想選擇。

用戶可以使用SensorConnect軟件輕松地對節點進行連續，周期性突發或事件觸發采樣的編程?？蛇x的基于Web的SensorCloud接口可優化來自遠程網絡的傳感器數據的數據聚合，分析，演示和警報。

產品亮點

• 板載三軸加速度計，測量范圍為±2至±40 g

• 連續，周期性突發和事件觸發采樣

• 輸出原始加速度波形數據或?qū)С龅恼駝訁?shù)（速度，幅度，波峰因數）

• LXRS協議允許無損數據收集，可擴展網絡和±50μs的節點同步

• 每小時1個樣本至每秒4096個樣本

• 堅固耐用的IP-67防護等級

功能和好處

高性能

• 用戶可配置的低通和高通濾波器

• 所有軸上的噪音極低25μg/√Hz或80μg/√Hz

• 高精度溫度傳感器±0.1°C

• 無線范圍可達2公里（典型值800米）

• 數據記錄最多800萬個數據點

便于使用

• 端到端無線傳感解決方案縮短了開發和部署時間

• 使用SensorConnect遠程配置，采集和顯示傳感器數據

• 可選的基于Web的SensorCloud平臺可優化數據存儲，查看，警報和分析

• 與開源通信和命令庫（API）輕松定制集成

應用

• 振動監測

• 基于狀態的維護（CBM）

• 影響和事件監測

• 旋轉部件，飛機，結構和車輛的健康監測

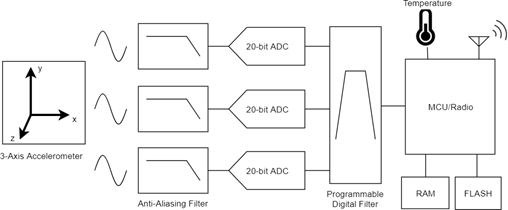

The G-Link-200 has an onboard triaxial accelerometer allowing high-resolution data acquisition with extremely low noise and drift. Derived vibration parameters allow for long-term monitoring of key performance indicators while maximizing battery life.

LORD Sensing Wireless Sensor Networks enable simultaneous, high-speed sensing and data aggregation from scalable sensor networks. Our wireless sensing systems are ideal for test and measurement, remote monitoring, system performance analysis, and embedded applications.

Users can easily program nodes for continuous, periodic burst, or event-triggered sampling with the SensorConnect software. The optional web-based SensorCloud interface optimizes data aggregation, analysis, presentation, and alerts for sensor data from remote networks.

PRODUCT HIGHLIGHTS

• On-board triaxial accelerometer with ±2 to ±40 g measurement range

• Continuous, periodic burst, and event-triggered sampling

• Output raw acceleration waveform data or derived vibration  parameters (Velocity, Amplitude, Crest Factor)

• LXRS protocol allows lossless data collection, scalable networks, and node synchronization of ±50 μs

• 1 Sample per hour to 4096 Samples per second

• Ruggedized IP-67 rated enclosure

FEATURES AND BENEFITS

HIGH PERFORMANCE

• User-configurable low and high pass filters

• Extremely low noise on all axis 25 μg/√Hz or 80 μg/√Hz

• High accuracy temperature sensor ±0.1°C

• Wireless range up to 2 km (800 m typical)

• Datalog up to 8 million data points

EASE OF USE

• End-to-End wireless sensing solution reduces development and deployment time

• Remote configuration, acquisition, and display of sensor data with SensorConnect

• Optional web-based SensorCloud platform optimizes data storage, viewing, alerts, and analysis

• Easy custom integration with open-source communications and command library (API)

APPLICATIONS

• Vibration monitoring

• Condition based maintenance (CBM)

• Impact and event monitoring

• Health monitoring of rotating components, aircraft, structures, and vehicles
